ClockworkMod (CWM) Recovery easy install for RK3066 and RK3188 -- TWRP/CWM Flash-Tool and root for RK3288

 Please donate to support OMA and CrewRKTablets firmware work, thank you !

sp_Feed sp_TopicIcon
Hailrazer's - Archos GamePad Larger Battery Mod
Avatar
hailrazer
New Member
Forum Posts: 7
Member Since:
2013/01/18
sp_UserOfflineSmall Offline

Thanks Received: 14
1
2013/01/20 - 04:43
sp_Permalink sp_Print sp_EditHistory

Yep, it's official. The Gamepad has a lousy battery.

All reviewers say they are getting around 2-3 hours gameplay or movie watching.

It's rated at 3000mAh , but I'm guessing it really is around 2000mAh.

So.................................... Let's put a bigger one in there !!!!!

Link to Hailrazer's - Archos GamePad Larger Battery Mod : http://www.made-by-bacteria.com/forum/viewtopic.php?f=97&t=2792&p=22293#p22293

I put in a TRUE 4700mAh Li-Po.

http://jonjandran.com/pics/jonjandran/gpbat5.JPGImage Enlarger

http://jonjandran.com/pics/jonjandran/gpbat1.JPGImage Enlarger

http://jonjandran.com/pics/jonjandran/gpbat8.JPGImage Enlarger





Battery life :
Playing : Android Games and N64 Emulation constantly
Screen brightness : Around 85%
Volume : 50%
Wi-Fi : Off

Before mod --- 2 1/2 - 3 hours
After mod --- 6 hours

This was with the first initial charge. With a full discharge and re-charge it could be higher.



The following users say thank you to hailrazer for this useful post:

yunder, -popup-, molex, admin, Megabit, nubis, YOSOYPEPO, sigma.nl, godmarck
Avatar
hailrazer
New Member
Forum Posts: 7
Member Since:
2013/01/18
sp_UserOfflineSmall Offline

Thanks Received: 14
2
2013/01/21 - 02:29
sp_Permalink sp_Print

Battery life :
Playing : Android Games and N64 Emulation constantly
Screen brightness : Around 85%
Volume : 50%
Wi-Fi : Off

Before mod --- 2 1/2 - 3 hours
After mod --- 6 hours

This was with the first initial charge. With a full discharge and re-charge it could be higher.

The following users say thank you to hailrazer for this useful post:

albejanon
Avatar
sigma.nl

Contributor
Forum Posts: 44
Member Since:
2012/12/29
sp_UserOfflineSmall Offline

Thanks Received: 30
3
2013/01/21 - 13:59
sp_Permalink sp_Print

Nice that's looks very interesting 6 hous is more like it.
That's how it should be. The battery is a couple of mm thicker does it fit nicely
or do you feel it when holding the gamepad. Also is the gamepad much heavier than before?

I'm Thinking about to also apply the battery mod.

thnx



Avatar
hailrazer
New Member
Forum Posts: 7
Member Since:
2013/01/18
sp_UserOfflineSmall Offline

Thanks Received: 14
4
2013/01/22 - 01:47
sp_Permalink sp_Print

You can't tell any difference at all when holding it.



It's about 1oz heavier.


Avatar
nubis
New Member
Forum Posts: 7
Member Since:
2012/12/29
sp_UserOfflineSmall Offline

Thanks Received: 4
5
2013/01/23 - 11:24
sp_Permalink sp_Print

Could you please tell us the weight of the original Archos battery?

I'm looking forward to trying this mod, but if there's a remote chance that I could get a battery with equal weight (or even less) then it would be even better.

Avatar
hailrazer
New Member
Forum Posts: 7
Member Since:
2013/01/18
sp_UserOfflineSmall Offline

Thanks Received: 14
6
2013/01/23 - 14:50
sp_Permalink sp_Print

A bigger battery will weigh more. Laws of physics and all that.

Avatar
YOSOYPEPO
New Member
Forum Posts: 5
Member Since:
2013/01/07
sp_UserOfflineSmall Offline

Thanks Received: 2
7
2013/01/25 - 16:03
sp_Permalink sp_Print

Nice, but a little difficult for me



Avatar
pacopa21
New Member
Forum Posts: 1
Member Since:
2013/01/11
sp_UserOfflineSmall Offline
8
2013/01/26 - 03:40
sp_Permalink sp_Print sp_EditHistory

I wonder if it fits well and is thicker. If so is a good option. I await your response. Thanks

Si se pudiera comprar esta baterĂ­a en Europa ya seria total

Avatar
rodnheli
New Member
Forum Posts: 8
Member Since:
2013/01/07
sp_UserOfflineSmall Offline
9
2013/02/06 - 09:23
sp_Permalink sp_Print



thanks for this great mod!!

now i wanted to buy this battery - but... i'm from austria and delivery costs are horrible :-(

probably somebody knows a seller from this battey in UK, netherlands, germany... europe :-) ?



thanks a lot for your help!

heli

Avatar
sigma.nl

Contributor
Forum Posts: 44
Member Since:
2012/12/29
sp_UserOfflineSmall Offline

Thanks Received: 30
10
2013/03/16 - 22:47
sp_Permalink sp_Print

Finally managed to mod my Gamepad with a new battery, didn't buy a battery from http://www.batteryspace.com because the delivery cost are too much, I could not find a battery here in the netherlands or europe for a nice price so I went for this one:

http://www.aliexpress.com/snapshot/216822244.html

Although It's from china and not recommended by Hailraizer but It could not be worse than the stock battery from archos.
It took 4 weeks to receive it but I got it. It fit's perfect with some modifying of the corners of the battery.
Now I will see how long it will last.

Also bought this one: http://www.aliexpress.com/snapshot/216822243.html
and it is a little smaller and would fit somewhat better I think but this one is 4000 Mah and the other is 4400 Mah so I when't for that one.

The gamepad is somewhat heavier but I like it better feels more natural for a tablet.

Hailrazer I followed the tutorial and worked perfect thanks a lot now I'm a lucky owner of a Gamepad with a better battery and also a new d-pad (from a snes controller, took some time to get it perfect but now all is great)

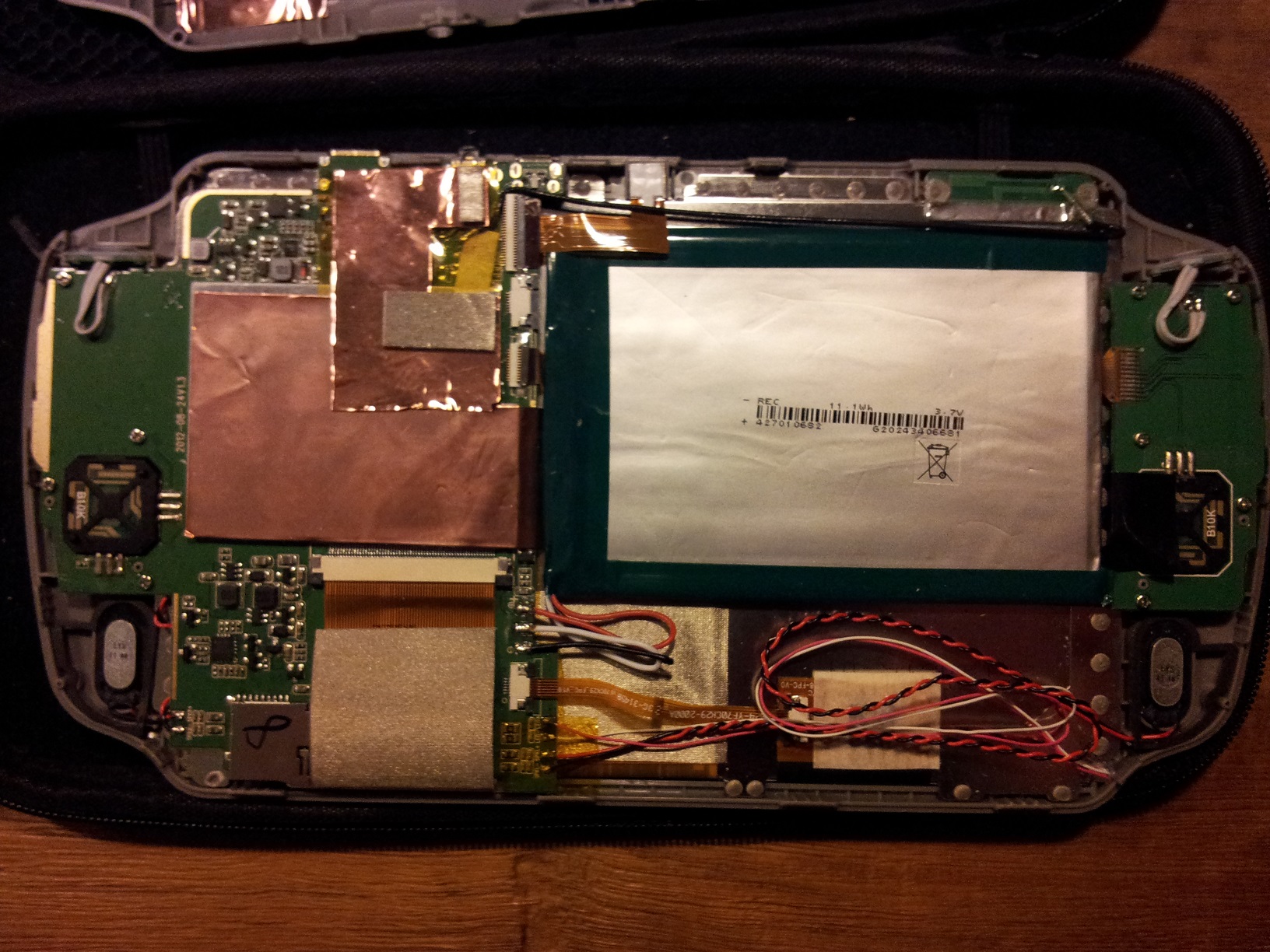

before:

20130316_202700.jpgImage Enlarger

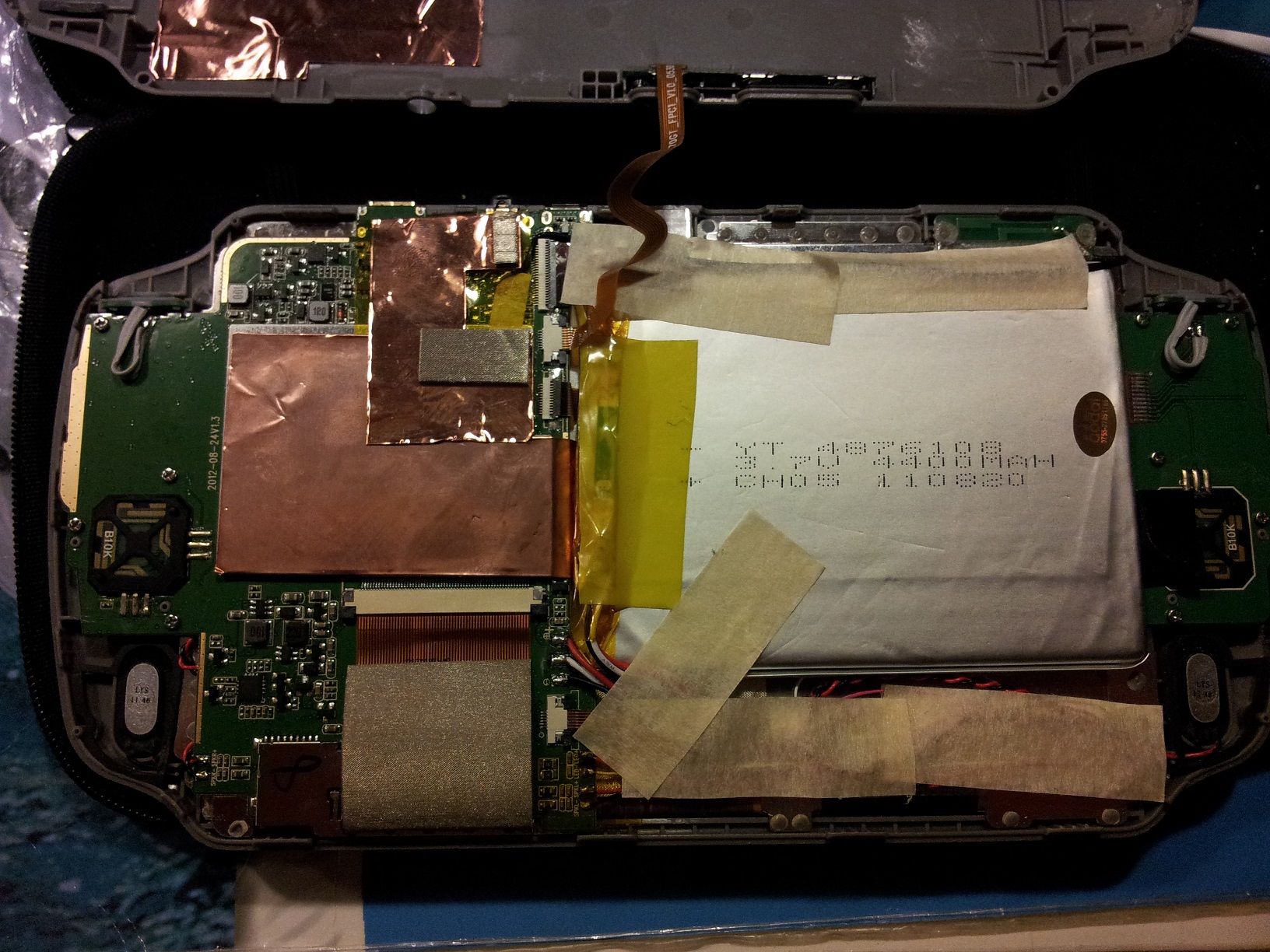

After:

20130316_214250.jpgImage Enlarger

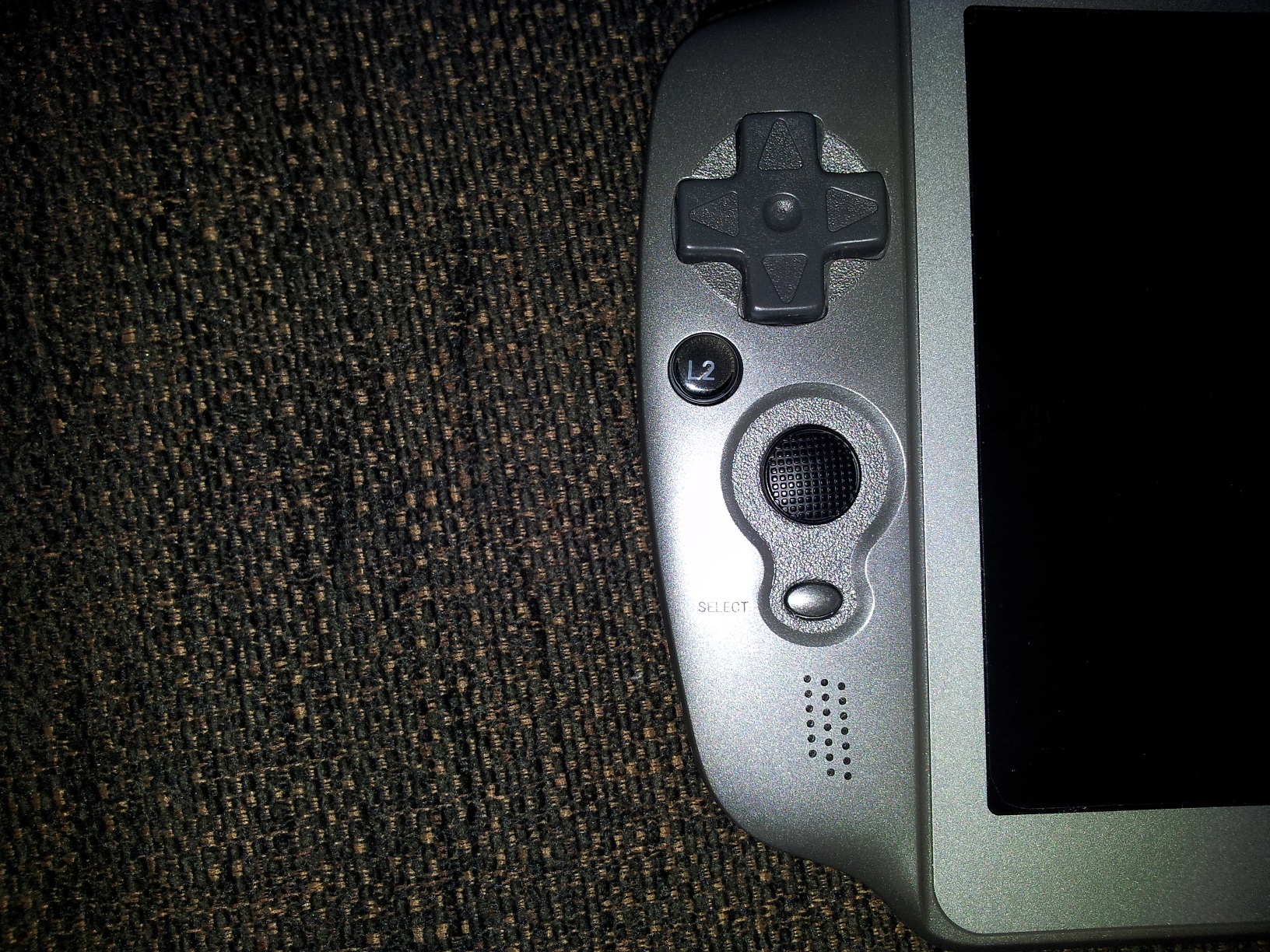

The D-pad:



20130316_224238.jpgImage Enlarger







sp_PlupAttachments Attachments
Avatar
hailrazer
New Member
Forum Posts: 7
Member Since:
2013/01/18
sp_UserOfflineSmall Offline

Thanks Received: 14
11
2013/03/16 - 22:51
sp_Permalink sp_Print

Nice job.  🙂



Have you measured the battery life now ?

Avatar
sigma.nl

Contributor
Forum Posts: 44
Member Since:
2012/12/29
sp_UserOfflineSmall Offline

Thanks Received: 30
12
2013/03/16 - 22:59
sp_Permalink sp_Print

hailrazer said
Nice job.  🙂



Have you measured the battery life now ?

no not yet it's saying that I still have 52% but I did not delete the battery stats and want to drain it first completely so I can charge It fully. Have you got any suggestions how I can measure the battery life the best way? did you use a timer or something :) and did you wipe the battery stats



Avatar
belstfranz
Member
Forum Posts: 19
Member Since:
2012/12/29
sp_UserOfflineSmall Offline
13
2013/04/06 - 19:09
sp_Permalink sp_Print

I also tried this mod with this battery:



http://shop.lipopower.de/4000-mAh-37V-Einzelzelle-1C-55mm-breit-85mm-lang



Unfortunately, after the installation the Gamepad turns on with the regular screen

for a few seconds and  then turns off and stays blank. After appr. 2-3 hours of charging the same. There is

a slight noise from the mainboard ("tick-tick-tick" like a fixed rhythm) while the Gamepad is connected to the usb charger (wall). I desoldered the new battery and put the old one in, but the results are the same (also the sound stays the same)!



HELP would be MUCH MUCH appreciated!!!SurprisedCryConfused

Avatar
hailrazer
New Member
Forum Posts: 7
Member Since:
2013/01/18
sp_UserOfflineSmall Offline

Thanks Received: 14
14
2013/04/06 - 22:58
sp_Permalink sp_Print

If you put back in the old battery and it is still messing up, I'd say you did something wrong and fried the pcb. But I don't know how you did it, so I can't offer much advice.

Avatar
djvicio
New Member
Forum Posts: 2
Member Since:
2013/02/02
sp_UserOfflineSmall Offline
15
2013/04/21 - 21:08
sp_Permalink sp_Print sp_EditHistory

Hi a question, the microcontroller board that brings you removed the battery to connect the ancient or welding've installed the 2 cables (red / white) to the plate?.
